LED-07
Product Description

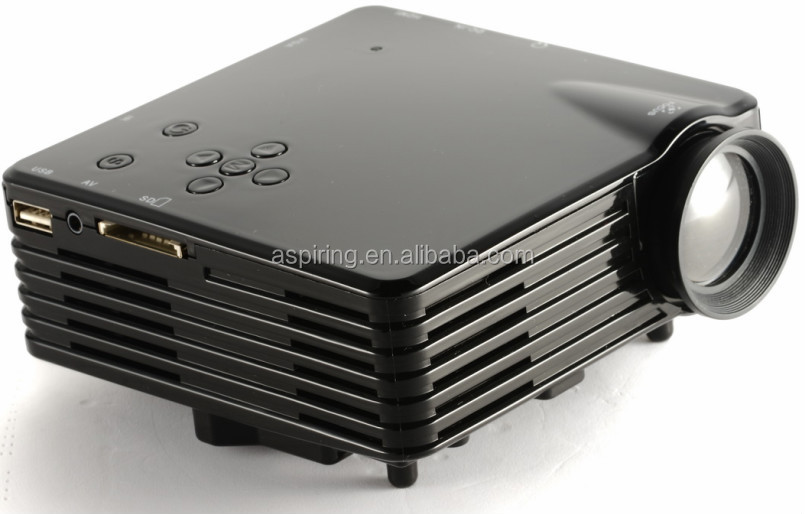

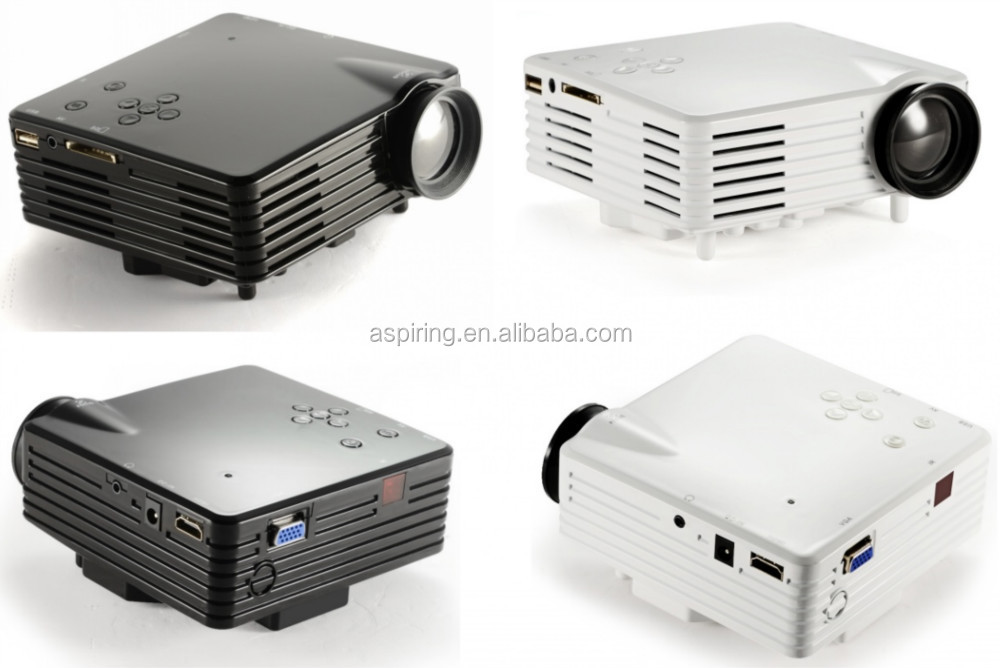

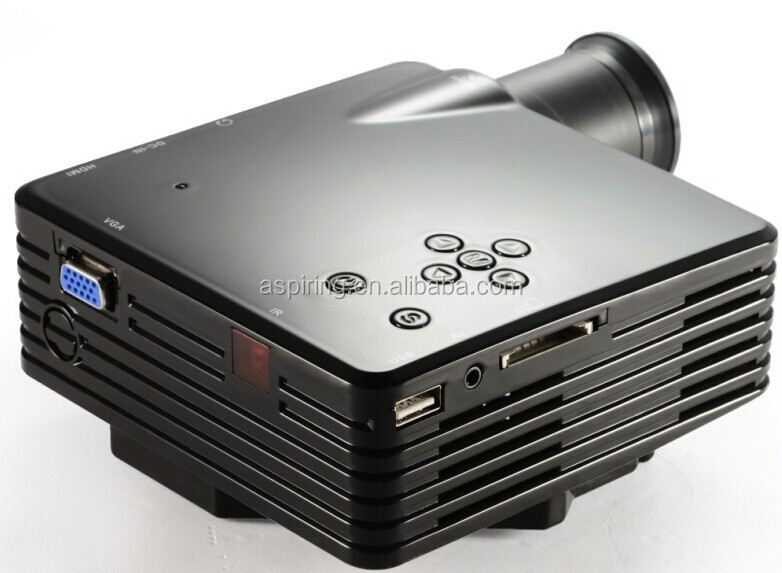

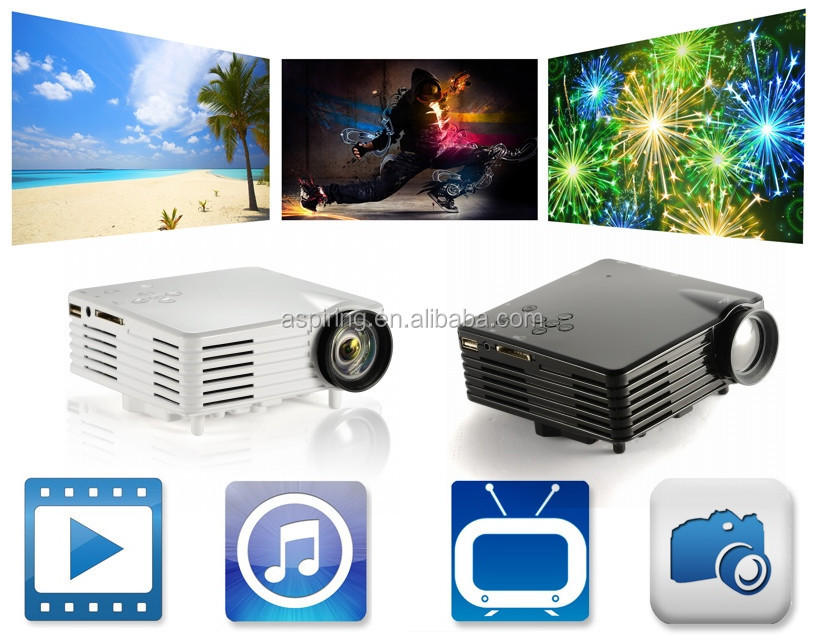

Product Preview:
This is not a professional multimedia projectors for school education.
LED-07 Is a new design, Incredible low-cost direct shipping, 12PCS led Bulbs can display 100lms
brightness (Brightness is still just a reference).
Native 480x320Pixels support 1080P (Full HD) Dynamic Image for home theater.

with HDMI Port x1, USB / SD Port x1, VGA Port x1 and Conventional audio and video port, VGA port is
Just basic function.
the LED-07 not replace multimedia educational projectors, If you connect to a computer, it will not
provide the best Text Effects.and the LED-07 new design was inspired by other ODM Customized
customers feedback.

Standard Interface:
1) VGA Port, D-sub HD 15-pin (female) x 1 (RGB x 1)
2) HDMI Port, Compatible With 1.1 to 1.4
3) USB Multimedia Port, Supports External 1TB HDD Connection to Video Decoding
4) SD Card-Reader Port, High-Speed Connection Fast Decoding
Product Highlights:
1) native 480x320Pixels up to 1080P by HDMI.
2) Amazing LCD true color display technology.
3) Green energy saving Long Life LED light source above 20K Hrs.
4) About 100 Lumens brightness for market rules.
5) Projection Maximum 80inch a true Dynamic image.
6) Powerful USB multimedia decoding capabilities.
7) Including HDMI more perfect HD 1080P video decoding capabilities.
8) two-years free warranty Commitment.



Other highlights:
 Audio play: Supported audio from:MP3,WMA,AAC,FLAC,APE Multi audio-effect:7 mode of
audio-effect plus SRS WOW and SRS WOW HD,mp3 EMBED ALBUM ART PICTURE display
supported,synchronic LCR lyric display supported,Breaking point continuous play supported
Picture display: Supported static picture file:JPEG,BMP,GIF,PNG,TIF,Support multi PPT exchange
Effect: Chessboard, partition, effaces, etc.Picture scaling, rotation supported Energy saving mode: Energy
saving time setting and sleeping timing.
Video display: Supported video file format:
RMVB/RM( Realvideo2.0/3.0/4.0),AVI(Xvid/H264),WMV(WMV7/8/9),FLV(Sorenson H.263) Breaking
point continuous play supported
Text Read: TXT text file supported,Automatic page turning and manual turning supported,Breaking
point continuous display & Background music supported.
Packing Accessories included :
1) mini Projector x1
2) Quick user manual x1
3) Lens cover x1
4) AV cable x1
5) Power adapter x1



Lamp& Life: 12Pcs LED,20K Hrs Life
Brightness: 100lms
Contrast Ratio: 300:1,Dynamic up to 10K
I/O(Input/Output): HDMI x1;SD/USB x1;Audio x1,RCA/VGA in x1;Video out x1
Imaging System: Single LCD Panel Display
Number of Pixels: 480x320x3
Throw Ratio: 1.16:1
Keystone correction: n/a
Lens: Manual Lens&Focus
Scanning frequency :525i (480i), 625i (576i), 525p (480p), 625p (576p),
750 (720)/60p, 750 (720)/50p, 1125 (1080)/60i,
1125 (1080)/50i, 1125 (1080)/24P, 1125 (1080)/50&60P"
Video / S-Video: fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60]
fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM]
Projection method: Front, rear .
Power supply: 12V & 2A power adapter
Power consumption: 32W
Fan noise: as low as 31 dBa
Speaker: 8Ω, 2 W x2 stereo
Dimension (WxHxD): 12.7x12.6x5.6cm
Product weight: 0.5kg
OSD menu language: 8 Language
Packing accessories: Projector x1;AC Power adapter x1;RCA Cable x1, Remote Control x1,CD User
Manual x1
Optional accessories: Tripod,Power Adapter
Warranty: Projector&lamp ttl 2-years

Packaging & Shipping



20pcs/carton

carton size   : 36x28.5x44.5cm

net weight : 9.20kgs

gross weight : 10.20kgs



Our company has our own shipping agent,we can arrange shipment via DHL,FEDEX,UPS,TNT and EMS,for large cargos,we also can arrange shipment by sea or by train or by plane,depend on customer's request



Our Services



1:At first customers can order sample to test our quality,we can refund sample cost once order is dropped

2:OEM&ODM service is available for every customers

3:Third party inspection is acceptable

4: Warranty:1 years after shipment ,we can offer free parts for your repairing, if must returns for servicing, freight charges to be born by both
